apidoc 사용법
senni
2019. 8. 22. 12:19
공식사이트: http://apidocjs.com/
apiDoc - Inline Documentation for RESTful web APIs
Demo This is an example documentation: watch demo output » presentation (speakerdeck.com)
1. npm, node.js 설치
2. apidoc 설치 ($ npm install apidoc -g)
3. apidoc command 명령어를 사용할 디렉토리에 아래 소스로 apidoc.json 파일 생성
{
"name": "example",
"version": "0.1.0",
"description": "apiDoc basic example",
"title": "Custom apiDoc browser title",
"url" : "https://api.github.com/v1"
}
4. sample.js 소스 생성(파일명은 아무거나 사용해도 무방함)
/**
* @api {get} /user/:id Request User information
* @apiName GetUser
* @apiGroup User
*
* @apiParam {Number} id Users unique ID.
*
* @apiSuccess {String} firstname Firstname of the User.
* @apiSuccess {String} lastname Lastname of the User.
*
* @apiSuccessExample Success-Response:
* HTTP/1.1 200 OK
* {
* "firstname": "John",
* "lastname": "Doe"
* }
*
* @apiError UserNotFound The id of the User was not found.
*
* @apiErrorExample Error-Response:
* HTTP/1.1 404 Not Found
* {
* "error": "UserNotFound"
* }
*/

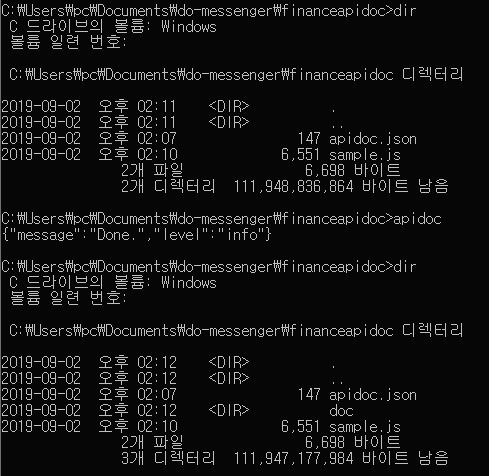

5-1. command에서 "apidoc"라는 명령어를 실행하면 자동으로 디렉토리 내 js 소스를 읽어와 컴파일하여 doc라는 폴더를 생성하여 그 안에 파일 생성
5-2. "apidoc -i src -o apidoc" 처럼 소스폴더(-i)와 타겟폴더(-o) 옵션을 지정하여 실행하는 것도 가능
6. 기타 설정 및 자세한 사용법은 맨 위 URL 참고
7. 컴파일 된 파일은 서버 등에 올린 후 인터넷 브라우저로 index.html에 접속해 확인 가능
참고url: https://wiki.arone.co.kr/pages/viewpage.action?pageId=3080227
